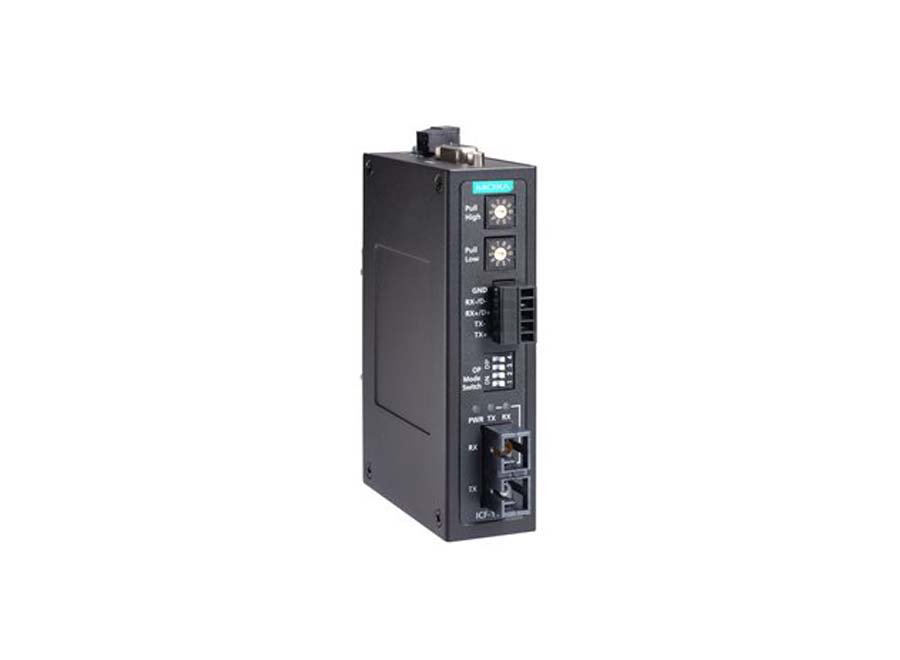

ICF-1150-S-ST-IEX
Industrial RS-232/422/485 to fiber converters
● 3-way communication: RS-232, RS-422/485 and fiber
● Rotary switch to change the pull high/low resistor value
● Extends RS-232/422/485 transmission
● 40 km with single-mode or 5 km with multi-mode
● -40 to 85°C wide-temperature range models available
● C1D2, ATEX, and IECEx certified for harsh industrial environments
-
Product category
-
sub-category
-
Partner name
-
Series name
Attributes
Serial Port
1Fiber Port
1
| Media Converters Type | Serial to Fiber Converter | Serial Interface | 2 RS-232, RS-422, RS-485 |
Fiber Port | 1 |
| PoE Ports | – | Combo Ports | – | Input Voltage | – |
| IP | IP30 | Mounting | DIN-rail mounting | Dimensions | 30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| Weight | 330 g (0.73 lb) | Housing | Metal | Operating Temperature | 0 to 60°C (32 to 140°F) |
| Warranty Period | 5 years |
The ICF-1150 serial-to-fiber converters transfer RS-232/RS-422/RS-485 signals to optical fiber ports to enhance transmission distance. When an ICF-1150 device receives data from any serial port, it sends the data through the optical fiber ports. These products not only support single-mode and multi-mode fiber for different transmission distances, models with isolation protection are also available to enhance noise immunity. The ICF-1150 products feature Three-Way Communication and a Rotary Switch for setting the pull high/low resistor for onsite installation
